Multifunctional premium-class compact 2-way system. The coaxial configuration in combination with a carefully designed large-area horn ensures absolutely constant response even off the main axis. High-power Neodym drivers and long-excursion coils provide high efficiency and reduced distortion.Three M10 threaded mounting points are available to mount accessories for installation or mobile applications.The integrated digital amplifier technology provides 500/ 220 Watt AES and DSP control. A range of factory-configured presets and volume settings can be selected.

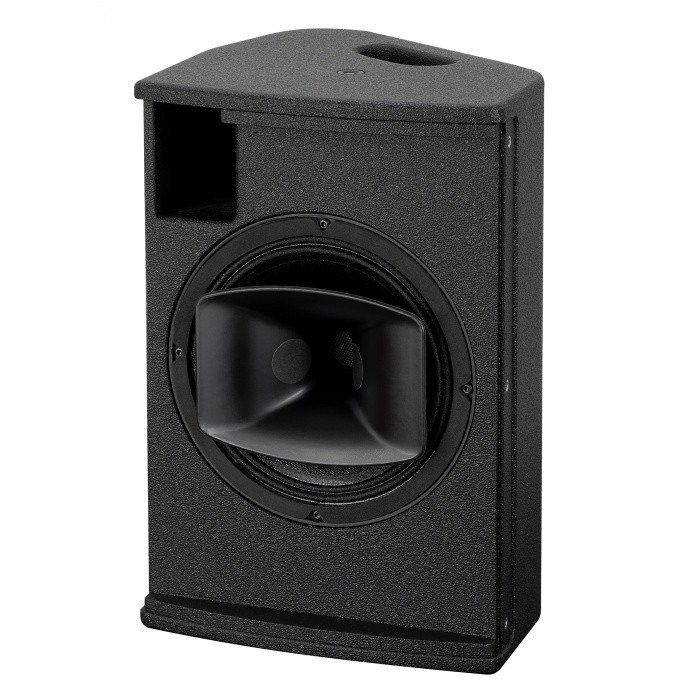

- Speaker Components: 8“ Nd (2,5“ VC) / 1“ Nd (1,7“ VC)
- Description: "Multifunctional Coaxial Sound System: - digitally powered"
- Amp Power AES: LF: 500 W / HF: 220 W / 110-230 V
- Rated Current: 0,4 A
- SPL Peak@1m: 124 dB
- Max. Input Signal: 25 dBu
- DSP: HDLM FPGA Processing 32 bit floating point
- AD / DA: 24 bit / 96 kHz
- Latency: 0,8 ms (analog in to analog out)
- Usable Range: 70 Hz - 19 kHz (-6 dB)
- Tuning Frequency excursion minimum: 80 Hz
- X - Overpoint acoustical: Depends on preset
- Coverage horizontal / vertical: 90° x 60° - rotatable

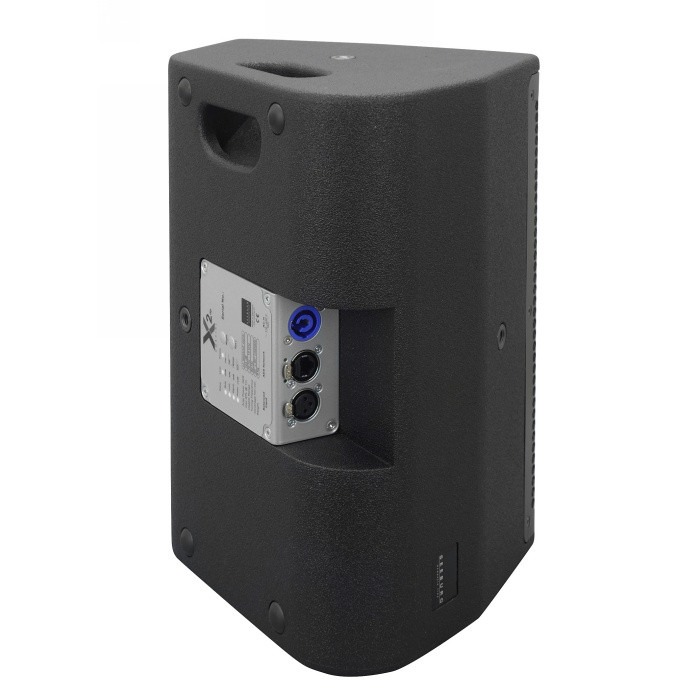

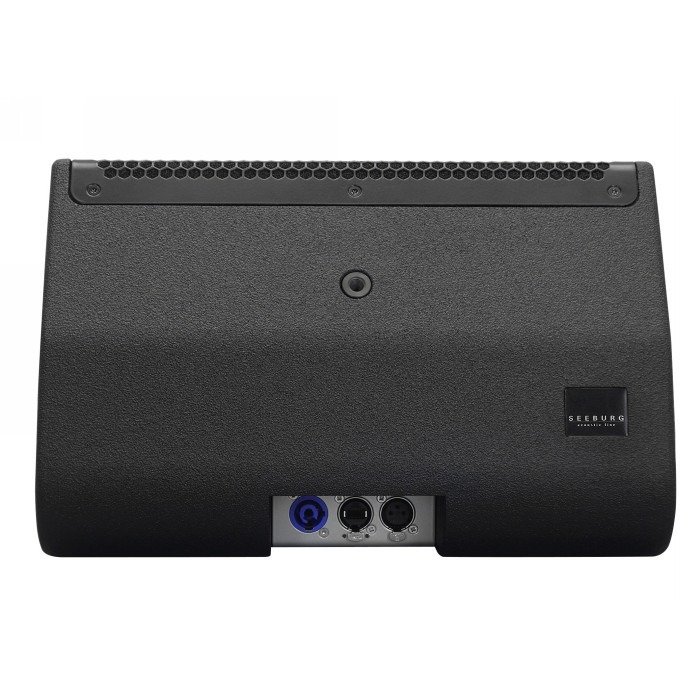

- Connectors: Neutrik XLR in/ Ethercon/ Neutrik PowerCon in
- Handles: 1 x
- Rigging / Fittings: 3 x M10
- : 35 mm pole mount
- Weight: 8 kg
- Size height x width x depth: 37,5 x 25,0 x 25,0 cm
