Multifunctional premium-class compact 2-way system. The coaxial configuration in combination with a carefully designed large-area horn ensures absolutely constant response even off the main axis. High-power Neodym drivers and long-excursion coils provide high efficiency and reduced distortion.Nine M10 threaded mounting points are available to mount MultiRigg hardware and other accessories for installation or mobile applications.The integrated digital amplifier technology provides 1500/ 400 Watt AES and DSP control. A range of factory-configured presets and volume settings can be selected.
- Speaker Components: 15“ Nd (3,5“ VC) 1,4“ Nd Compression Driver (3“ VC)
- Description: Multifunctional Coaxial Sound System - digitally powered
- Amp Power AES: LF: 1500 W / HF: 400 W / 110-230 V
- Rated Current: 0,7 A
- SPL Peak@1m: 134 dB
- Max. Input Signal: 25 dBu
- DSP: HDLM FPGA Processing 32 bit floating point
- AD / DA: 24 bit / 96 kHz
- Latency: 0,8 ms (analog in to analog out)
- Usable Range: 50 Hz - 18 kHz (-6 dB)
- Tuning Frequency excursion minimum: 60 Hz
- X - Overpoint acoustical: Depends on preset
- Coverage horizontal / vertical: 80° x 60° - rotatable

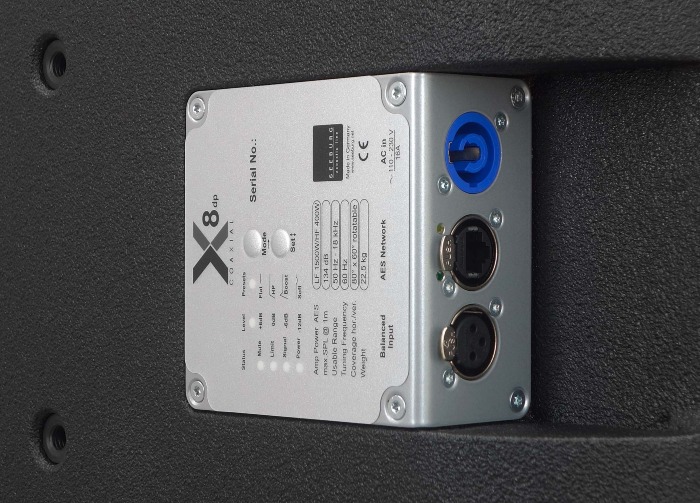

- Connectors: Neutrik XLR in/ Ethercon/Neutrik PowerCon in
- Handles: 2 x
- Rigging / Fittings: 9 x M10 To be used with MultiRigg™ 35 mm pole mount
- Weight: 22,5 kg
- Size height x width x depth: 58,0 x 45,0 x 38,0 cm
